Network Devices

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 1x 100BaseFX multi-mode port, 2x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-1M2S-SC Data Sheet
EDS-408A-1M2S-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 1x 100BaseFX multi-mode port, 2x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-1M2S-SC-T Data Sheet
EDS-408A-1M2S-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports, 1x 100BaseFX single-mode port with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-2M1S-SC Data Sheet
EDS-408A-2M1S-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports, 1x 100BaseFX single-mode port with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-2M1S-SC-T Data Sheet
EDS-408A-2M1S-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX multi-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:

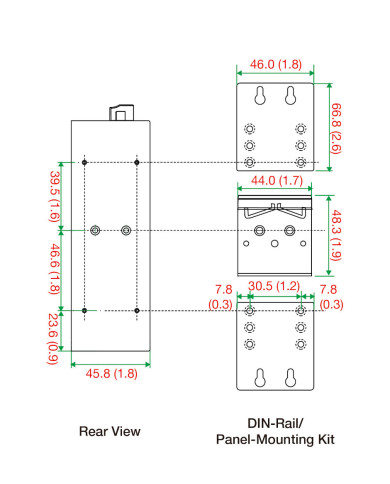

EDS-408A-3M-SC Data Sheet
EDS-408A-3M-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX multi-mode ports with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3M-SC-T Data Sheet
EDS-408A-3M-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX multi-mode ports with ST connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3M-ST Data Sheet
EDS-408A-3M-ST EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX multi-mode ports with ST connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3M-ST-T Data Sheet
EDS-408A-3M-ST-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3S-SC Data Sheet
EDS-408A-3S-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, ±24/±48 VDC input voltage, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3S-SC-48 Data Sheet
EDS-408A-3S-SC-48 EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, ±24/±48 VDC input voltage, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3S-SC-48-T Data Sheet
EDS-408A-3S-SC-48-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-3S-SC-T Data Sheet
EDS-408A-3S-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-MM-SC Data Sheet
EDS-408A-MM-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-MM-SC-T Data Sheet
EDS-408A-MM-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports with ST connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-MM-ST Data Sheet
EDS-408A-MM-ST EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX multi-mode ports with ST connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-MM-ST-T Data Sheet
EDS-408A-MM-ST-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 8x 10/100BaseT(X) ports, integrated DIN-rail mount, PROFINET enabled, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-PN Data Sheet
EDS-408A-PN EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 8x 10/100BaseT(X) ports, integrated DIN-rail mount, PROFINET enabled, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-PN-T Data Sheet
EDS-408A-PN-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-SS-SC Data Sheet
EDS-408A-SS-SC EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 6x 10/100BaseT(X) ports, 2x 100BaseFX single-mode ports with SC connectors, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-SS-SC-T Data Sheet
EDS-408A-SS-SC-T EU Declaration of Conformity

Industrial layer 2 managed Ethernet switch with 8x 10/100BaseT(X) ports, integrated DIN-rail mount, -40°C to 75°C extended operating temperature

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Attachments:
EDS-408A-T Data Sheet
EDS-408A-T EU Declaration of Conformity

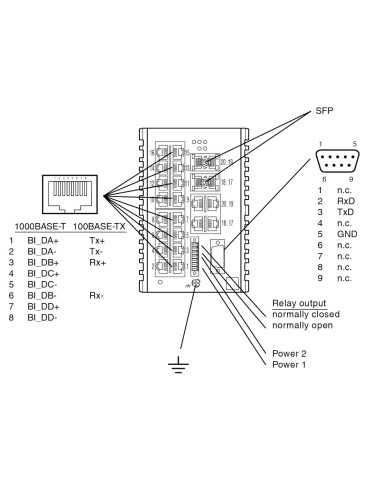

Ethernet managed gigabit switch with 20 RJ45 ports with 4 shared SFP ports

• 16 Gigabit Ethernet RJ45 ports, 4 Gigabit Ethernet RJ45 ports shared with 4 SFP ports
• Layer 2 Network Performance
• Redundant power input with a input power range of 10 to 60 VDC
• IP20 with an extreme operating temperature range of -40 to 75°C
• Suitable for PROFINET IO and EtherNet/IP

Attachments:
ICRL-M-16RJ45/4CP-G-DIN Data Sheet
ICRL-M-16RJ45/4CP-G-DIN EU Declaration of Conformity

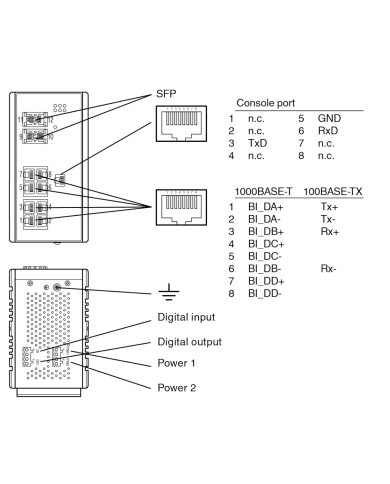

Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports

• 8 Gigabit Ethernet RJ45 ports and 4 Gigabit SFP ports with DDM function
• Layer 2 Network Performance
• Redundant power input with an input power range of 10 to 36 VDC
• IP20 with an extreme operating temperature range of -40 to 75°C
• Suitable for PROFINET IO and EtherNet/IP

Attachments:
ICRL-M-8RJ45/4SFP-G-DIN Data Sheet
ICRL-M-8RJ45/4SFP-G-DIN EU Declaration of Conformity

Ethernet unmanaged switch with 8 RJ45 ports and 2 uplink ports

• Industrial PoE IEEE 802.3af compliant unmanaged switch
• Eight 10/100BASE-TX PoE ports and two Gigabit uplink ports
• Total output power budget of 80 W (15.4 W maximum on each port)
• Voltage boost technology that supports 8 - 32 V DC power input sources for transportation, security and industrial applications
• QoS support for optimizing video and VoIP stream
• Alarm relay for failure and event notification
• Extended operating temperature range (-40 to +70 °C)
• Suitable for PROFINET IO and EtherNet/IP

Attachments:
ICRL-U-10RJ45-PoE-B-DIN Data Sheet
ICRL-U-10RJ45-PoE-B-DIN EU Declaration of Conformity
