Lanner

Intel Arc Pro B60 dual-slot GPU card for AI-accelerated workloads

• GPU accelerator powered by Intel Arc Pro B60
• PCIe Gen 5 FHFL interface
• Max.197 GPU TOPS, 2.4 GHz graphic clock
• Built-in 24 GB GDDR6 Memory
• 200 W total board power
• Support Intel’s Xe Matrix eXtensions (XMX AI Engines)
• 3x DP 2.1 (by SKU), 1x HDMI 2.1

Attachments:
AV-DG301 Data Sheet
Edge AI platforms brochure

AI Inference System With NVIDIA Jetson AGX Orin processors

• NVIDIA Jetson AGX Orin Processors
• Up to 275 TOPS AI performance
• LPDDR5 DRAM 64/32 GB memory (by SKU)
• 1x GbE RJ45, 1x 10 GbE RJ45, 1x 2.5 GbE RJ45
• 2x COM, 4x USB3.2, 1x HDMI
• 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for LTE/5G, 1x Nano-SIM

Attachments:
EAI-I233 Data Sheet
Edge AI platforms brochure

Industrial-grade AI Inference System With NVIDIA Jetson AGX Orin processors

• NVIDIA Jetson AGX Orin Processors
• Up to 248 TOPS AI performance
• LPDDR5 DRAM 64 GB
• 1x GbE RJ45, 1x 10 GbE RJ45, 2x 2.5 GbE RJ45 with PoE+
• 2x COM (optional CAN), 4x USB 3.2, 1x HDMI, 8x Video-in, 1x Line-in & 1x Line-out
• 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for LTE/5G, 2x Nano-SIM
• Wide range of operating temperature -40 ~ 70ºC

Attachments:
EAI-I251 Data Sheet
Edge AI platforms brochure

Industrial Grade High Performance AI Platform With 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors

• 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors
• 5600 MHz DDR5 SODIMM Up to 96 GB, 4x 2.5” Removable HDD/SSD
• 2x 2.5 GbE RJ45, 1x RJ45 Console, 1x RJ45 LOM (By SKU)
• 2x RS232/422/485 COM, 8x USB 3.2, 1x HDMI,1x DP, 4x DI & DO
• 1x M.2 (NVMe) 2280 M-Key, 2x SATA M.2 2242 M-Key
• 2x PCIe*16, 2x PCIe*4, 1x M.2 2230 E-Key for WiFi 6/6E (BT), M.2 3042/3052 B-Key for LTE/5G
• -25ºC ~ 65ºC Operating Temperatures

Attachments:
EAI-I730 Data Sheet
Edge AI platforms brochure

Compact AI Platform with 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors for Industrial Applications

• 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors
• DDR5 SODIMM Up to 96GB
• 2x 2.5” Removable HDD/SSD, 2x M.2(SATA) 2242 B-Key, 1x M.2(NVMe) 2280 M-Key
• 2x 2.5 GbE RJ45, 1x RJ45 Console, 1x RJ45 LOM (By SKU)
• 2x COM, 8x USB 3.2, 1x HDMI, 1x DP, 4x DI & DO
• 1x PCIe*16, 1x PCIe*4, 1x Nano-SIM & eSIM
• A NVIDIA-Certified System for industrial edge

Attachments:
EAI-I731 Data Sheet
Edge AI platforms brochure

AI Acceleration Railway Computer with Intel Raptor Lake-P CPU

• 13th Generation Intel Core Processor (Raptor Lake-P)
• Certified with EN50155 and EN45545 Standard
• NVIDIA MXM GPU Module Support
• 2x 2.5 GbE PoE+ LAN, 4x 2.5 GbE LAN, 1x USB 2.0, 2x USB 3.2, 2x HDMI, 1x Console, 1x OOB for RJ45
• Support 4x Removable PGN Series Caddies for 5G/LTE connectivity
• 1x Removable 2.5” drive bay

Attachments:
EAI-R530 Data Sheet
Edge AI platforms brochure

In-Vehicle Computing AI Inference System With NVIDIA Jetson Orin NX/Nano processors

• NVIDIA Jetson Orin NX/Nano Processors
• LPDDR5 Memory Up to 16/8/4 GB
• 1x GbE RJ45, 2x GbE RJ45 with PoE+
• 2x COM(optional 1x CAN), 2x USB 3.2, 1x HDMI, 4x GMSL2 Video-in
• GPS & G-sensor
• 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for LTE/5G, 2x Nano-SIM for LTE/5G module
• Wide range of operating temperature -40 ~ 70ºC

Attachments:
EAI-V151 Data Sheet
Edge AI platforms brochure

Fanless In-vehicle AI Inference System with Intel Elkhart Lake Processor

• Intel Atom X6000 Series Processor (codename: Elkhart Lake-I)
• 1x SODIMM DDR4, Up to 32 GB
• eMMC 128 GB, 1x SATA
• 1x PGN Series Removable Caddy, 1x M.2 304(5)2 B Key socket (USB 3.0/PCIe x1) for 4G LTE/5G sub6, 1x M.2 2230 E key socket for Wi-Fi
• 7x RJ45 ports (2x GbE LAN w/ I210IT, 4x PoE+ w/ 1x i210IS, 1x OOB (by SKU)
• 3x USB 2.0, 1x USB 3.0, 2x HDMI, 1x TPM 2.0

Attachments:
EAI-V330 Data Sheet
Edge AI platforms brochure

High Performance Edge AI Server with Intel Xeon D-2800/D-2700 Series Multi-core Processor (Codenamed Ice Lake D)

• Intel Xeon D2798NT/D2786NTE/D2896TER/D2899NT
• 4 x DDR4 3200/2933 MHz REG RDIMM, Max. 256 GB
• 8 x 10 GbE SFP+, 2 x 25 GbE SFP28, 2 x GbE RJ45, 2 x USB 3.0
• 1 x RJ45 Console, 2 x 2280 M.2 (1 x NVMe & 1 x SATA)
• 1 x OCP 3.0, 1 x PCIe x16
• NVIDIA-Certified System (For Industrial Edge)

Attachments:
ECA-4035 Data Sheet
Broszura - platformy brzegowe AI (EN)

2U 19” Edge AI Server with 5th/4th Gen Intel Xeon Scalable Processors

• 5th/4th Gen Intel Xeon Scalable Processors
• 16 x DDR5 RDIMM, Max. 1024 GB System Memory
• Short Depth Chassis And Front I/O Design
• 2 x FHFL PCIe x16 Slot, 2 x LP And 1 x OCP 3.0 NIC Slot
• 1 x M.2 NVMe (PCIe) 2242/2260 M Key, 1 x M.2 NVMe (PCIe) 2280 M Key
• Secure BMC / TPM 2.0

Attachments:
ECA-6040 Data Sheet
Edge AI platforms brochure

2U 19” Modular Edge AI Server Platform Based On Intel Xeon 6 Processor (Codenamed Sierra Forest-SP/Granite Rapids-SP)

• Intel Xeon 6 Processor (P-core and E-core)
• 8 x DDR5 6400 MHz RDIMM, Max. 1024 GB System Memory
• 2 x PCIe x16 FHFL, 1 x PCIe x16 FHHL or 1 x PCIe x16 LP (By SKU)
• 1 x GbE RJ45, 1 x USB 3.0
• 2 x M.2 NVMe (PCIe), 2x E1.S SSD
• 6 x Smart Fans, 2 x 1600 W AC CRPS PSU
• NVIDIA-Certified System (For Industrial Edge)

Attachments:
ECA-6051 Data Sheet
Edge AI platforms brochure

Best efficient PCIe AI accelerator card powered by Hailo-8 AI processors

• Best-in-class performance and cost-efficiency
• Scalable, supports 1, 2 or 4 Hailo-8 AI processors
• High power efficiency, low power consumption
• Commercial and industrial grade support
• Enablement software package with advanced deep learning models and AI reference applications
• Hailo-8 Software Development Tools significantly reduce time to market for AI applications

Attachments:
Falcon Lite Data Sheet
Edge AI platforms brochure

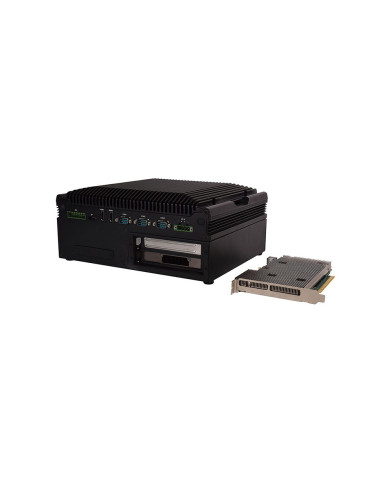

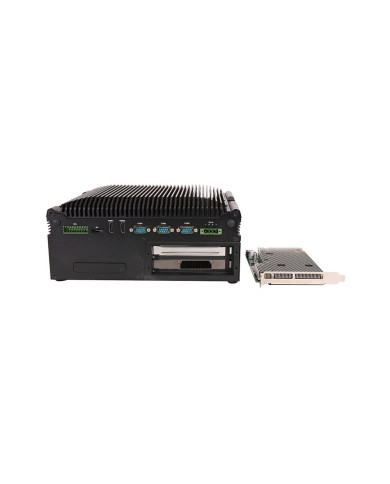

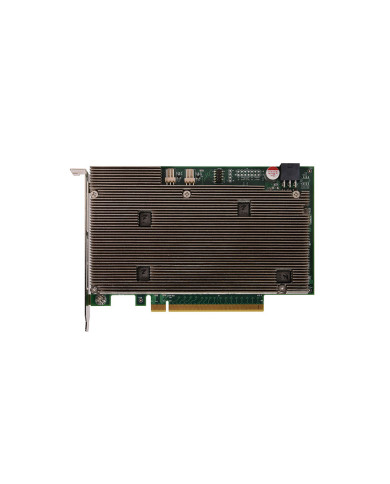

High-performance and cost-efficiency PCIe AI accelerator card

• Support for 4, 5 or 6 Hailo-8 AI processors
• Support for up to 156 TOPS 8000 FPS of ResNet-50
• Support for Hailo-8 Software Development Tools
• High performance and power efficiency

Attachments:
Falcon-H8 Data Sheet
Edge AI platforms brochure

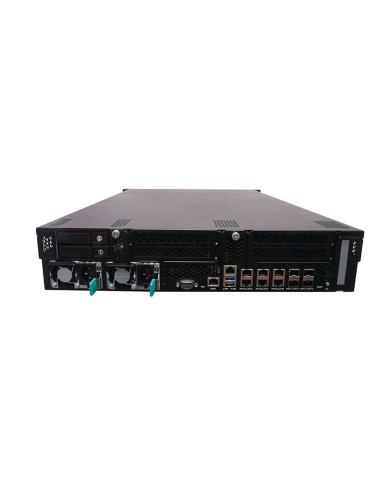

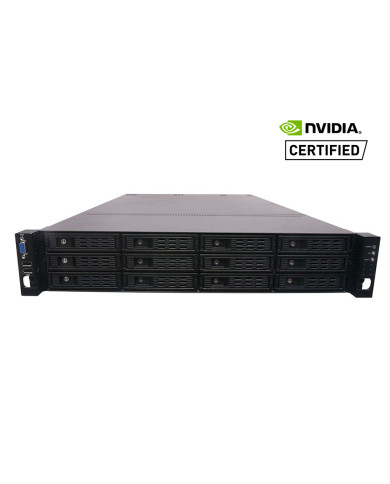

2U High Performance x86 Hyper-converged appliance with 12 x 3.5” Storage Bays

• 2U High Performance Hyper-converged Appliance
• Support Dual 2nd Gen Intel Xeon Scalable SP processor family up to 205 W and max. up to 24 x DDR4 R-DIMM
• Front: 12 x 3.5” HDD SATA 6G (Default), SAS/2 NVME (Optional)
• Rear: 2 x 2.5” SATA 6G
• Console, LOM port, MGT port, 2 x USB 3.0 ports, RJ45, SFP+ ports
• 2 x PCI-E x16 FH 10.5”L (Max. 266.7 mm) + 1 x PCI-E x8 HH/HL
• 1+1 redundant power supply
• A NVIDIA-Certified System for enterprise edge

Attachments:
FX-3420 Data Sheet
Edge AI platforms brochure

IEC 61850-3 Wide Temperature Industrial Cybersecurity Computer/Gateway

• IEC 61850-3 and IEEE 1613 Certified
• Certified with IP30 rating for enhanced durability
• Intel Atom X6211E/X6413E/X6425E CPU (Elkhart Lake)
• 6 x 100 Mbps/1 Gbps/2.5 GbE RJ45 with 1 pair bypass, 2 x GbE SFP, TPM 2.0, 1 x COM, 2 x USB, 2 x DIO
• Chassis Intrusion Detection, TPM 2.0, Optional IPMI support
• 1 x M.2 B-Key For LTE/5G, 1x M.2 E-Key for Wi-Fi module
• Dual +12 ~ 48 VDC Power Input, Operating Temperature -40 ~ 70ºC

Attachments:
ICS-P371 Data Sheet
Industrial edge computing brochure

IEC 61850-3 Wide Temperature Industrial Cybersecurity Computer/Gateway

• IEC 61850-3 & IEEE 1613 certified
• AMD Ryzen V1404I
• 6 x GbE RJ45 or 4 x GbE RJ45 + 2 x GbE SFP (1 pair LAN bypass by RJ45)
• 1 x RJ45 Console, 1 x USB 3.0, 2 x DIO
• 1 x M.2 3042 B-Key for LTE module with dual Nano-SIM
• Dual +12 ~ 48 VDC Power Input
• Wide Operating Temperature -40 ~ 70ºC

Attachments:
ICS-P570 Data Sheet
Industrial edge computing brochure

IEC 61850-3 Certified Industrial Computer for Digital Substation

• Intel Xeon 6 Processor (Sierra Forest-SP)
• DDR5 Memory up to 512 GB
• 4 x 2.5 GbE RJ45; 4 x 25 GbE SFP28 or 2 x GbE RJ45 & 2 x 10 GbE RJ45 w/ SRIOV (by SKU)
• 1 x Console, 5 x USB 3.1, 1 x VGA
• 2 x FHFL PCIe x16, 1 x FHFL PCIe Gen5 x8, 1 x FHFL PCIe Gen5 x4
• 4 x 2.5” U.2 NVMe Hot-Swappable Drive Bays, 1 x M.2 2280/22110 M-Key (NVMe)

Attachments:
ICS-P770 Data Sheet
Industrial edge computing brochure

Robust DIN-rail fanless industrial gateway with LTE/Wi-Fi 6 connectivity support

• Intel Atom X7-E3950 / N3350 SoC CPU (formerly Apollo Lake)
• 2x COM, 2x CAN 2.0 (optional for 2x COM), 4x DI/DO, 2x USB 3.0, 1x DB9 console, DP, SKU A/M/O: 4x GbE RJ45 (one pair bypass), SKU B/N/P: 2x GbE RJ45 (one pair bypass) & 2x SFP, SKU Q: 4x GbE RJ45
• Onboard eMMC 64 GB, DDR3L 4 GB pre-install, 1x mSATA, optional 1x internal SATA 2.5” drive bay, TPM 2.0
• 1x M.2 B-Key w/ Nano SIM for LTE, 1x M.2 E-Key for Wi-Fi 5/6
• Wide operating temperature range: -40 ~ 70°C for industrial SKU A/B

Attachments:
IIoT-I330 Data Sheet
Industrial edge computing brochure

IP67 rugged 5G edge network appliance

• Fanless design compliant with IP67 and MIL-STD-810G
• Intel Atom C3000 extended temperature CPU (Denverton)
• 2x DDR4 up to 2133 MHz ECC SODIMM slots, default 16 GB x1
• M12 I/O: SR-IOV for 4x LAN, 2x PoE+ (by SKU), 1x USB, 1x console
• Wide operating temperature: -40~70ºC or -40~60ºC (by SKU)
• 1x M.2 socket for 5G, 1x M.2 socket for Wi-Fi 6, 1x Mini-SIM
• Intel QuickAssist Technology
• On-board eMMC 128 GB, 1x M.2 2242 B Key, TPM 2.0

Attachments:
ISD-O370 Data Sheet
Industrial edge computing brochure

Rugged in-vehicle gateway with multi-WAN connectivity

• Intel Atom x6425E processor (Elkhart Lake)
• 1x DDR4 3200 MT/s SODIMM slot up to 32 GB with In Band ECC
• 3x Removable PGN Series Caddy, 1x M.2 3042 B-Key socket with dual nano-SIM slot for 4G/LTE, 1x M.2 2230 E-Key socket for WiFi
• 2x GbE RJ45, 3x USB 2.0, 1x USB 3.0, 2x HDMI, 1x TPM 2.0 2x RS232/422/485, 1x CAN 2.0, 4x DIO isolation
• eMMC 64 GB up to 128 GB storage, 1x SATA
• Operating temperature: -40 ~ 70ºC

Attachments:
ISD-V330 Data Sheet
Industrial edge computing brochure

IEC 61850-3 Compliant 3U Rackmount Controller System for Power Substation

• IEC 61850-3 and IEEE 1613 Certified
• Support Intel Xeon W-11000 series CPU (Tiger Lake H)
• Support 2 x SO-DIMM DDR4 ECC memory up to 64 GB
• 4 x 2.5 GbE RJ45, 1 x PCIe x16, 3 x PCIe x4
• 5 x USB, 2 x HDMI, 2 x isolated COM ports
• 2 or 3 x 2.5”swappable drive bays (by SKU)
• Support dual power input
• Wide temperature range -40°C ~ 70°C

Attachments:
LEC-3340 Data Sheet
Industrial edge computing brochure

IEC 61850-3 Wide Temperature ICS Cyber Security Computer/Gateway with Intel Atom CPU

• Wide Temperature ICS Cyber Security Box PC
• IEC 61850-3, IEEE 1613 and C1D2 Certified
• Intel Atom x7-E3950 or x5-E3930 CPU
• 5 x GbE LAN with 1 pair bypass, 2 x GbE SFP
• Onboard TPM support
• HDMI display output
• Mini-PCIe with SIM card slot for 4G-LTE support
• 2 x USB 3.0 and 2 x Isolated RS232

Attachments:
LEC-6041 Data Sheet
Industrial edge computing brochure

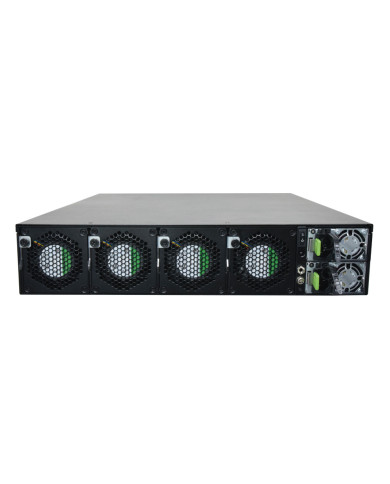

2U 19” Rackmount Network Security Server Built With Dual Intel Xeon 6 Processor (Codenamed Sierra Forest-SP/Granite Rapids-SP)

• Dual Intel Xeon 6 Processors w/ P cores & E cores
• 16 x RAM Max. 1536 GB DDR5 6400 MT/s REG DIMM
• 8 x NCS2 or 4 x N2S NIC Slots, 2 x GbE RJ45, 1 x RJ45 Console, 1 x LOM, 2 x USB 3.0
• 2 x U.2 Hot-Swappable NVMe, 3 x M.2 NVMe Storage
• 2 x Single-Deck or 1 x Double-Deck PCIE Gen5 FH3/4L GPU Cards Support
• 4 x Individual Hot-Swappable Fans, 1+1 Redundant PSUs

Attachments:
NCA-6250 Data Sheet
Edge AI platforms brochure

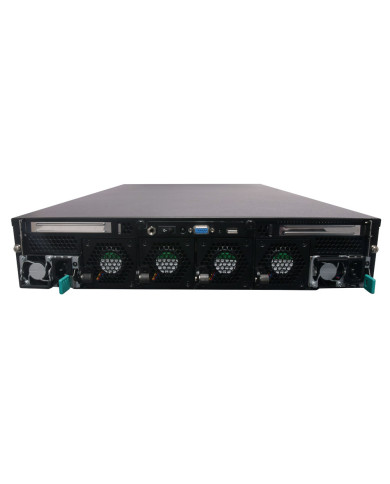

2U 19” Rackmount Edge AI Server with 3rd Gen Intel Xeon Scalable Processor (Codenamed Ice Lake SP)

• Dual 3rd Gen Intel Xeon Scalable Processor (Ice Lake SP)
• 24 x DDR4 2133/2400/2666/2933/3200 MHz, Max. 1536 GB
• 8 x NIC Slots, 2 x GbE RJ45, 1 x RJ45 Console, 1 x LOM, 2 x USB 3.0
• PCIe x16 Gen 4 Expansion (Optional), 3 x M.2-2280 (NVME & SATA)
• 100G Intel QAT, Intel SGX, Intel Boot Guard, TPM 2.0
• 4 x Individual Hot-swappable Fans, 1300 W/2000 W 1+1 ATX Redundant PSUs

Attachments:
NCA-6520 Data Sheet
Edge AI platforms brochure
